What Is AllTorque Doing That Is Different?

Continuous Recording

Nothing happens without the software recording it. Whether making or breaking a connection, pressure testing, or anything in between, the program seamlessly tracks everything.

Un-Editable Data

Data values are encrypted at the first stage of measurement. Personnel cannot hide or change any of the information seen by the system. Data is backed up and stored securely for 40 years.

Live Access

Internet access gives real-time access from anywhere in the world. Controlled access for Operators, TRS Companies and Pipe Manufacturers allows for a view of connection make-up remotely in real time.

Portal

The AllTorque web portal allows for remote access to live jobs and company data with out the need for special software. If you can surf the web you can watch a job in the field.

Reliable

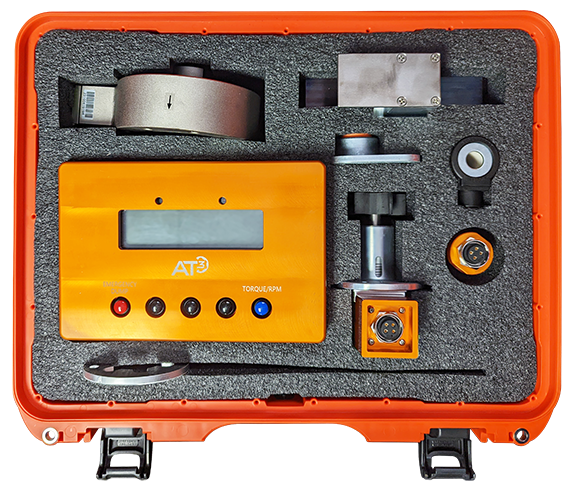

Hardware built for the rig floor

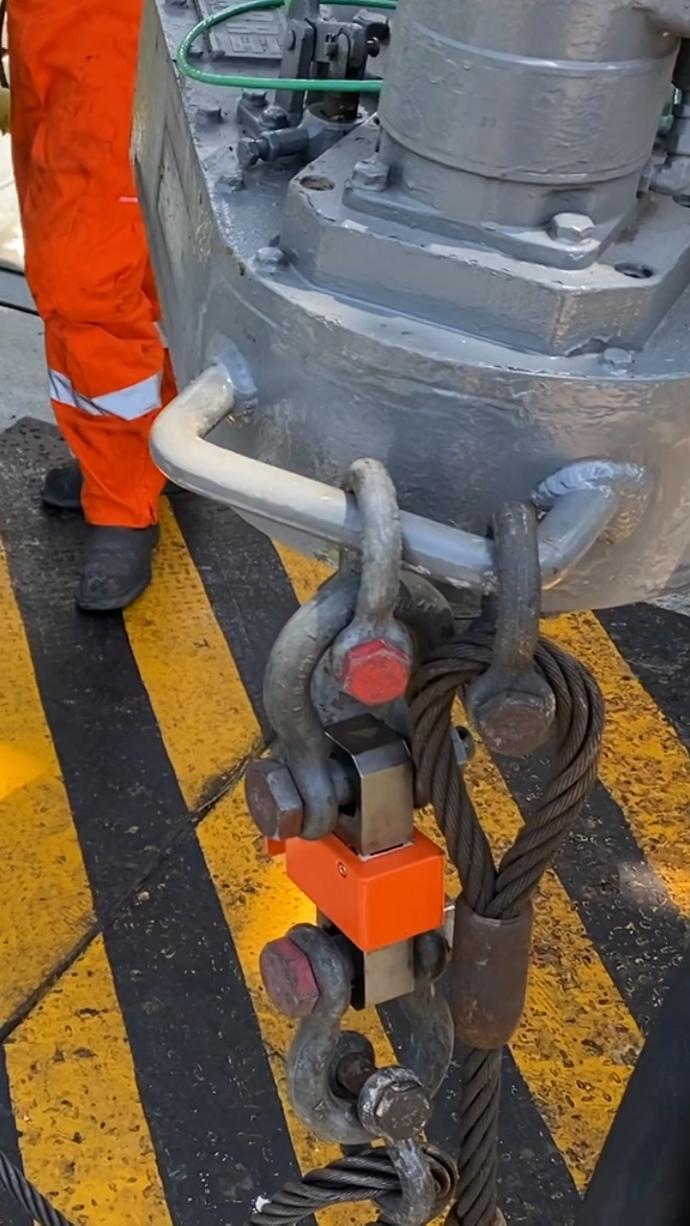

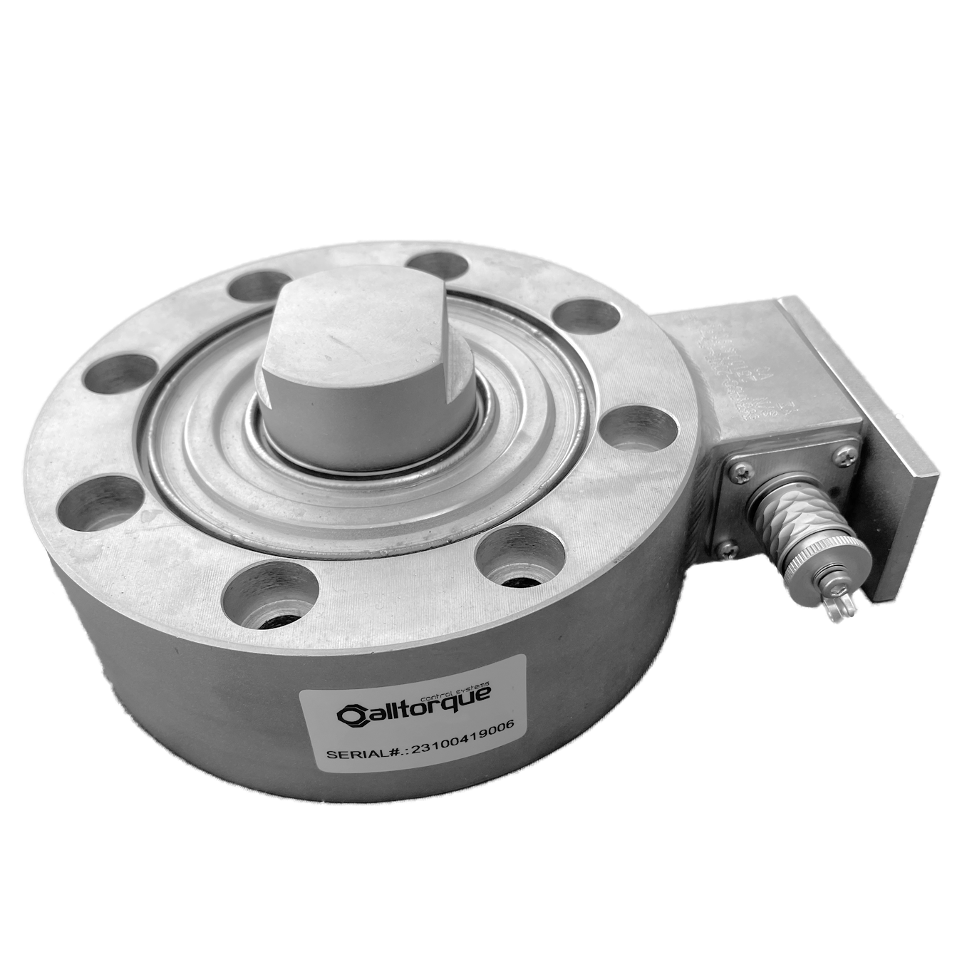

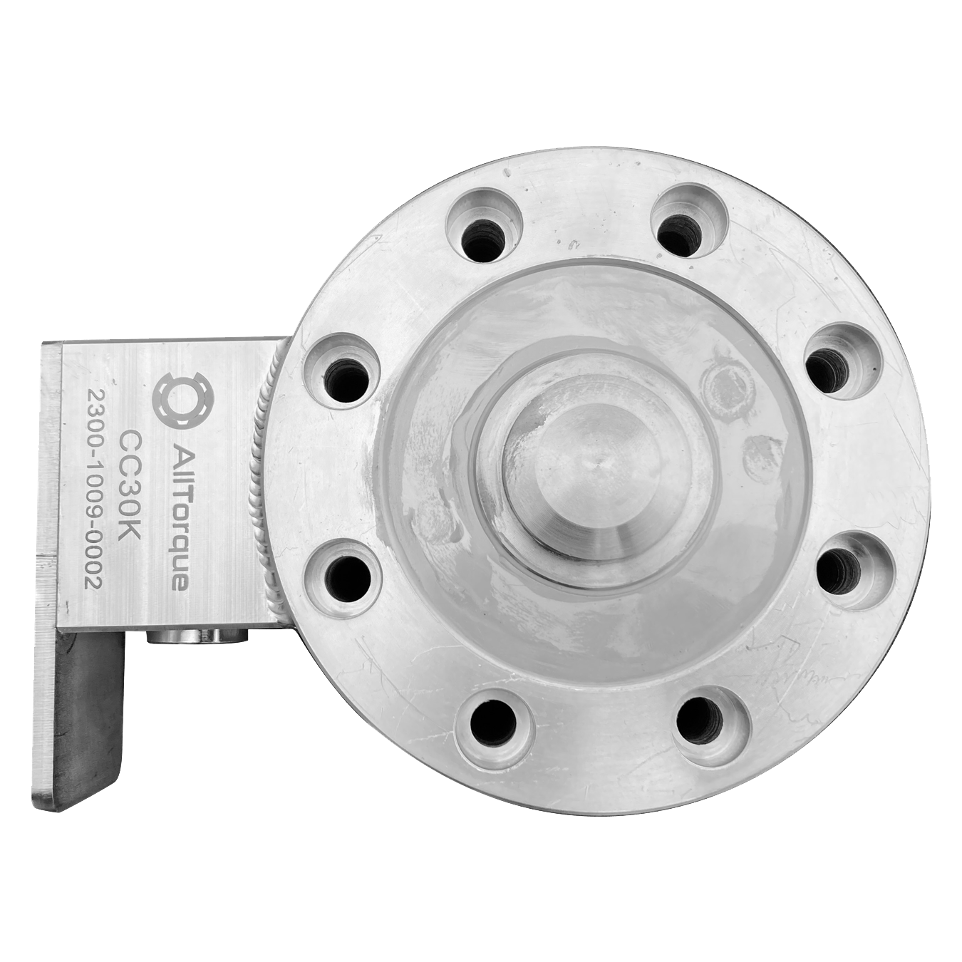

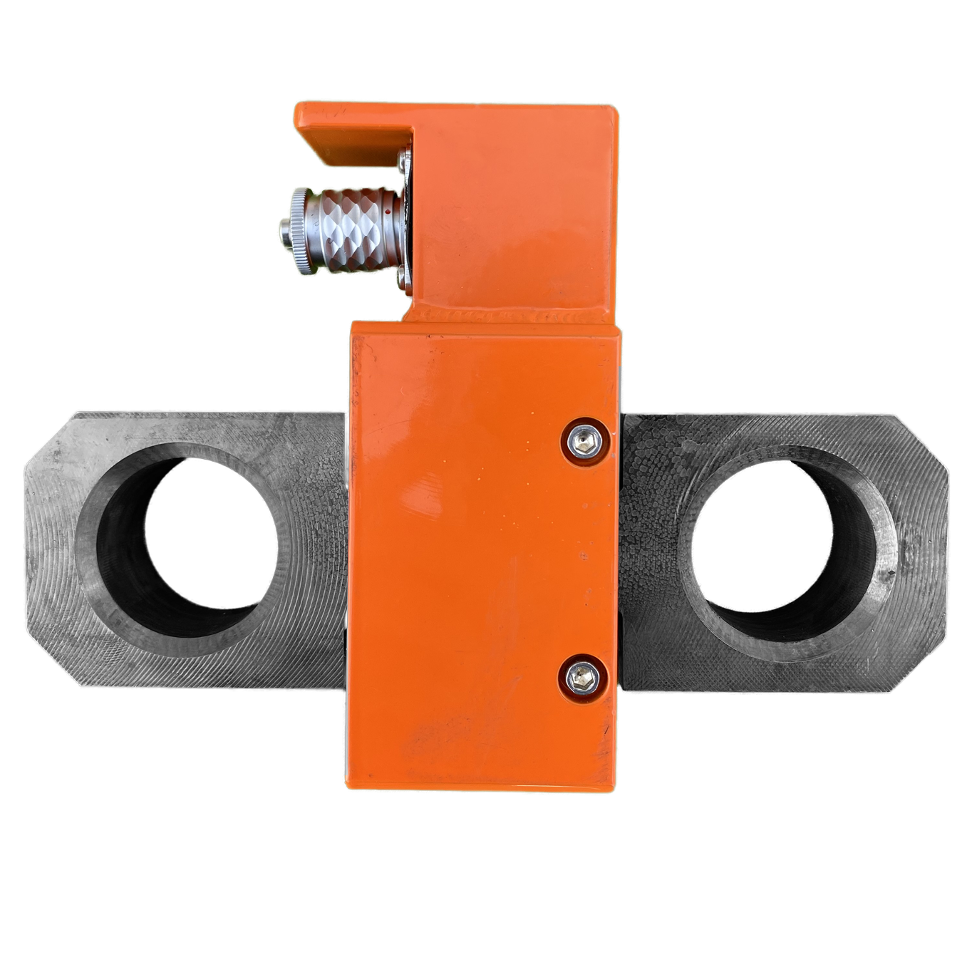

Robust load cells
Real Time cloud data backup

Accurate

Load cells calibrated to <0.1%
Industry leading sample rate >3000 Hz

Easy to Use

Clean and intuitive user interface Modular plug and play hardware
Step by step training guides
24/7 Technical support

TCS - GEN2
Torque Control System

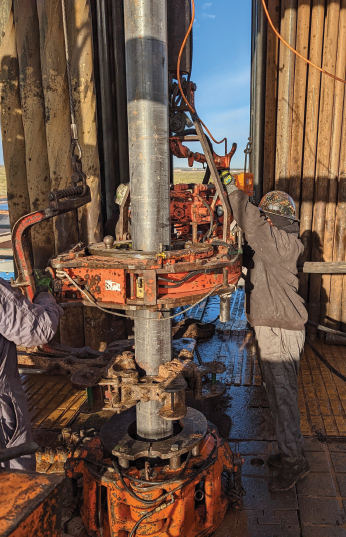

Setting the standard in tubular running, with its compact, versatile and rugged design.



AllTorque Hardware Features:

  • Built for the rig floor

  • Monitor and control with best-in-class accuracy

  • Torque vs. Turns, Time and RPM

  • Auto Accept


AllTorque Software Features:

  • Cloud based software

  • Compatible with Power Tongs and the Aelium Torque Sub

  • Software continuously updated with new features and security

  • Pipe, accessory, power tong and hardware libraries

  • Automatic connection detection, approval, and dumping

  • Customizable 1 step PDF reports

  • Torque, turns, RPM and optional shift Control

  • Continuous encrypted recording


Hardware Specifications:

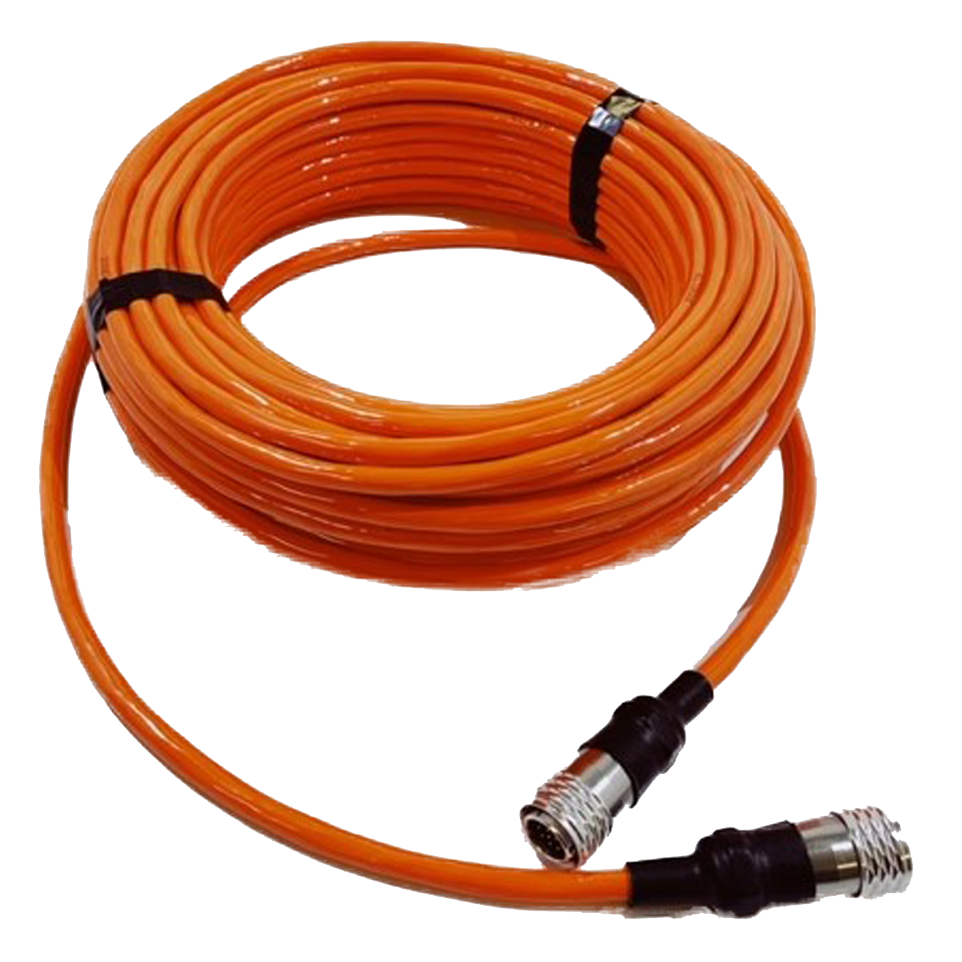

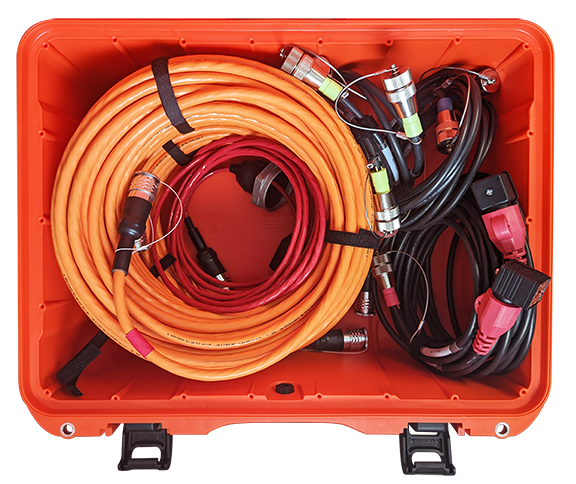

  • WEIPU Quick Connectors
  • PC: Microsoft Surface Pro running current Winows OS
  • Power: 110 -220 VAC Input Lithium ion with built in battery backup
  • Sampling Frequency: 30,000 Hz
  • Recording Frequency: 30 - 1000 Hz
  • Electronic Response Time: 0.04 ms

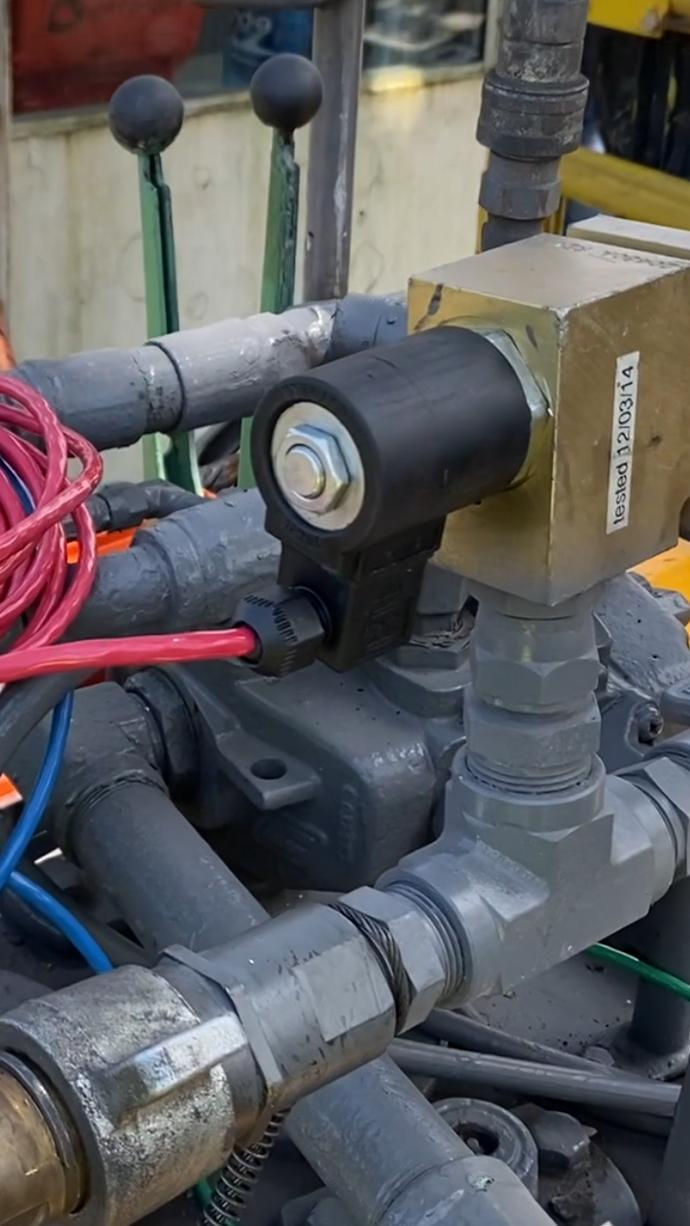

  • Dump Valve Response: 10 - 30 ms
  • Torque Control: +/- 1% of optimum

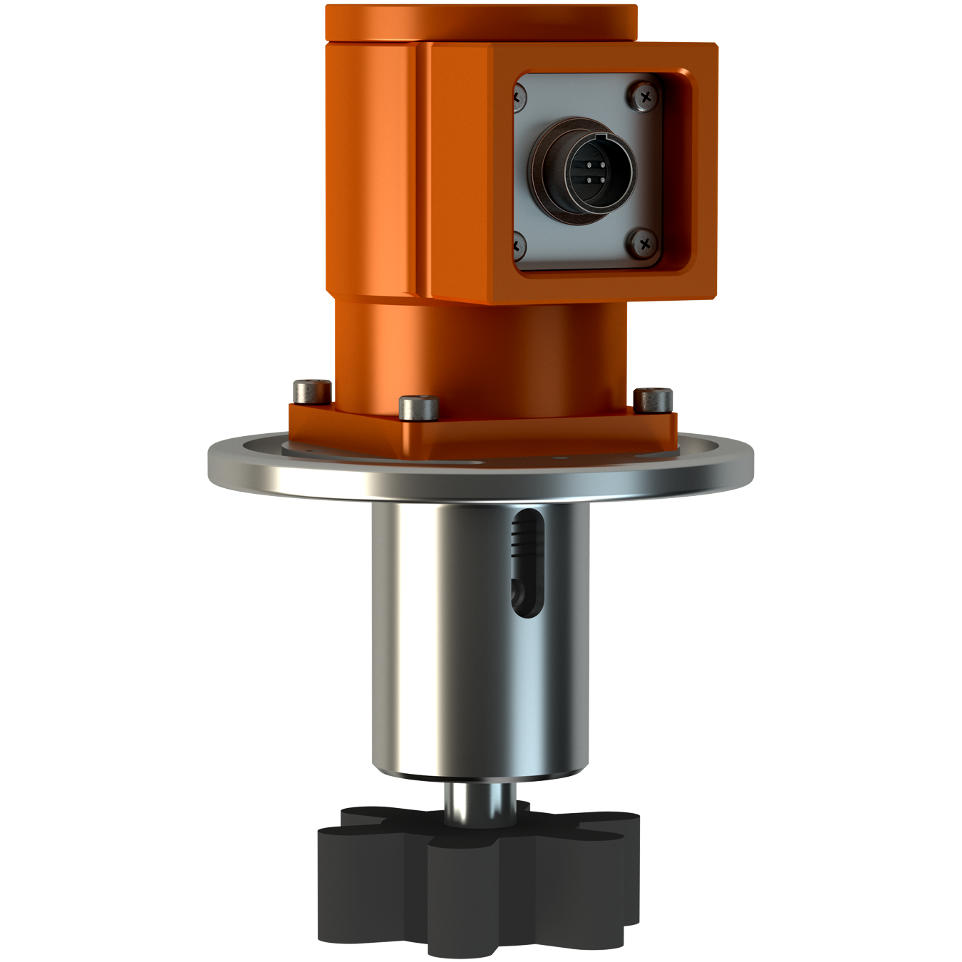

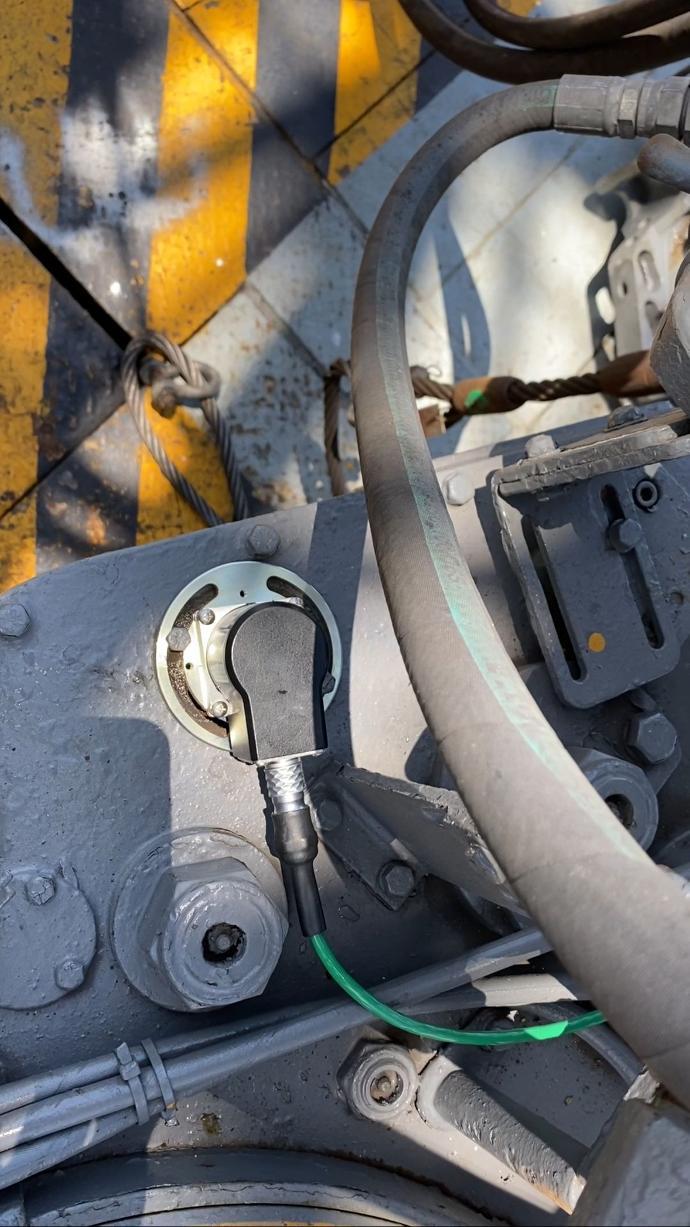

  • Turns Accuracy: < 0.1% per tong rotation
  • Computer Operating Temperature Range: 0 to 40 Deg C (32 to 104 Deg F)
  • Control Box Operating Temperature Range: -40 to 75 Deg C (-40 to 170 Deg F)


AT-GEN2 Brochure

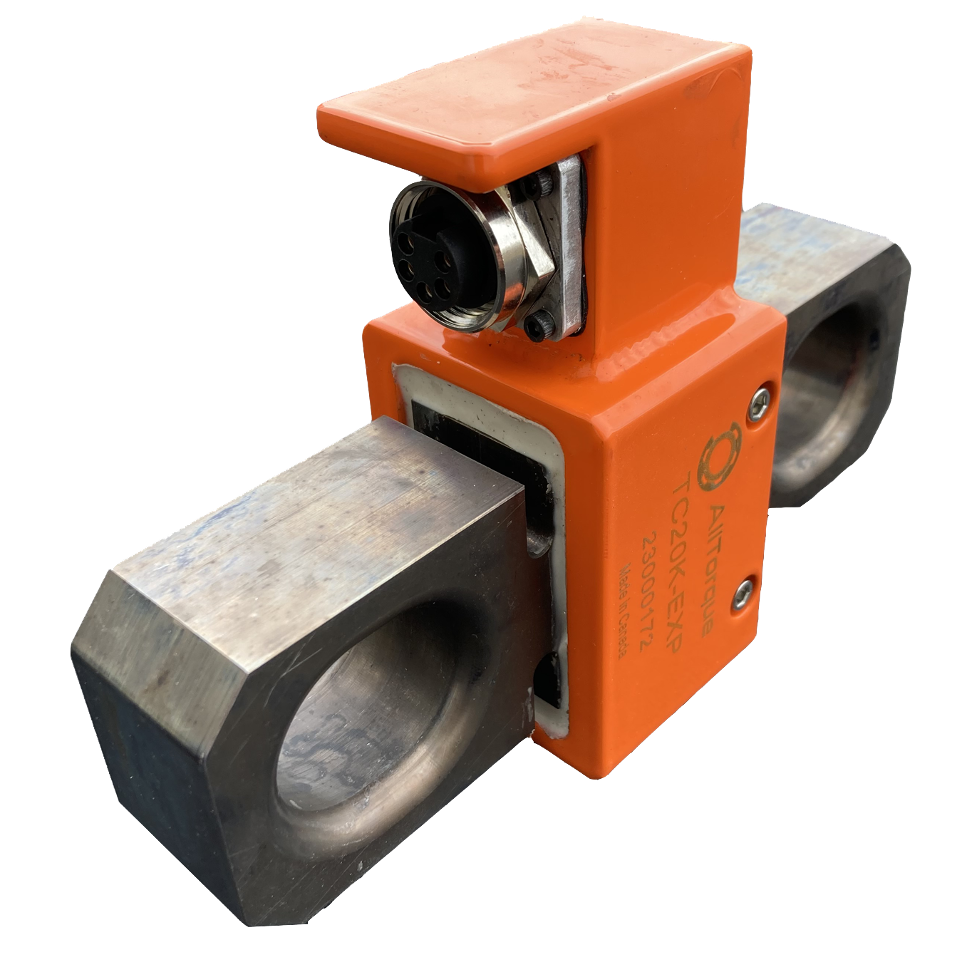

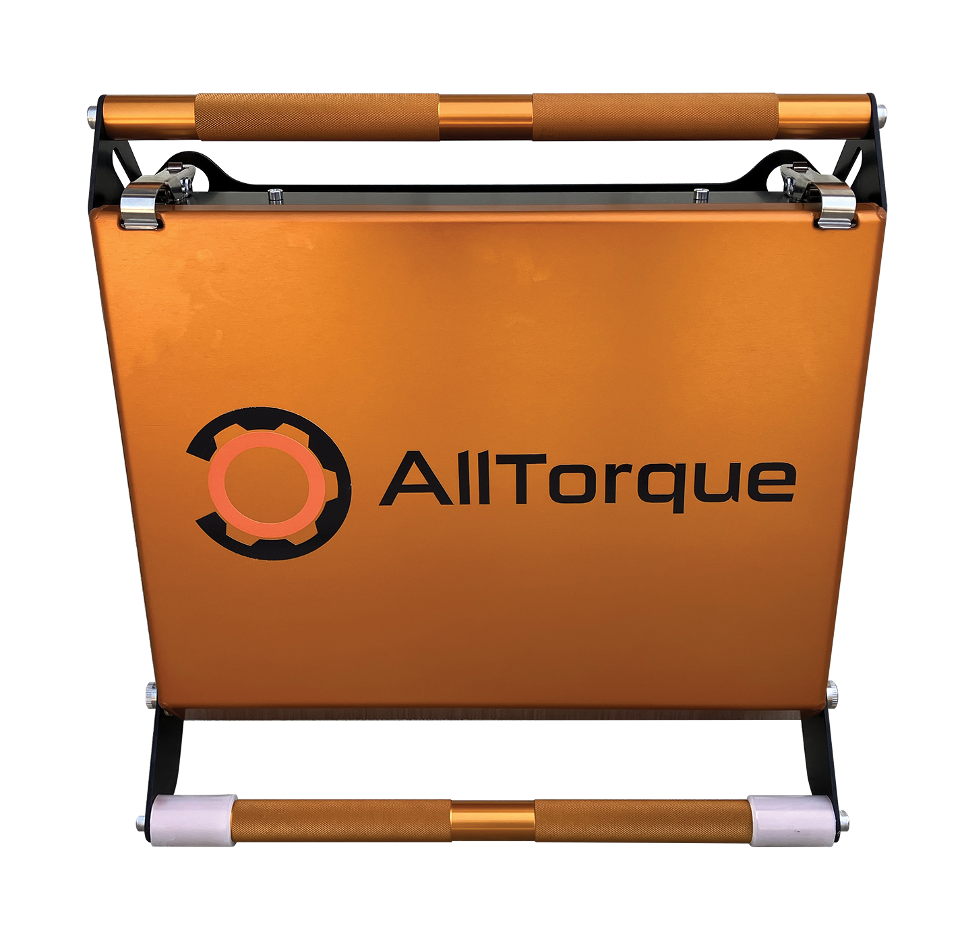

AT-EXP
Explosion Rated Torque Control System



This system uses the same AllTorque Software as the GEN2 and AT3 platform with upgraded connectors and hardware for use in hazardous locations.



  • IECEx / ATEX / CE / UL Class 1, Division 2
  • Turck Mil Spec Connectors
  • CPU/Dump Battery Isolation
  • Automated Torque, Turns and RPM control
  • Continuous Recording
  • Real Time Remote Sharing
  • Data Encryption
  • 40 Year Cloud Storage
  • Easy fleet management via synchronized settings and hardware
  • Automated connection detection, approval, and dumping


AT-EXP Brochure

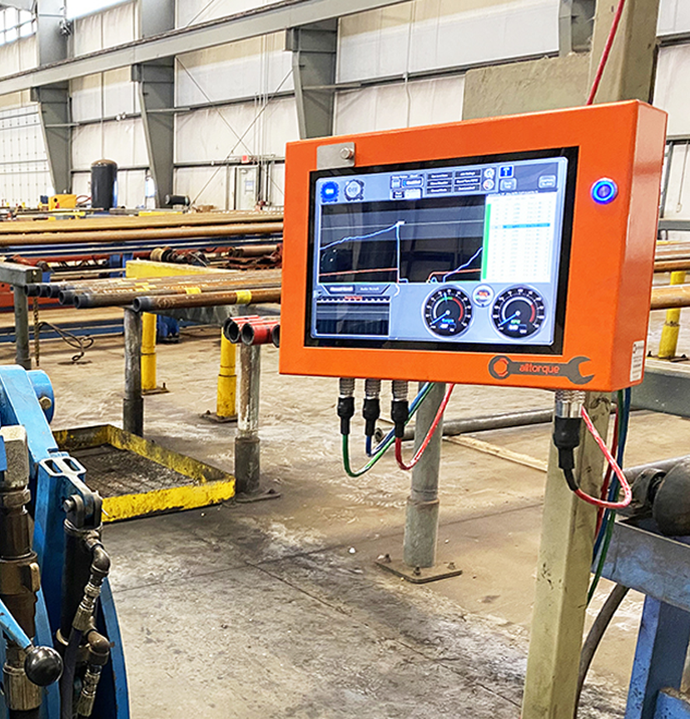

Bucking Unit
Torque Control System


A compact version of our GEN2 Computer Torque Monitoring system. It uses the same AllTorque Software as our other hardware platforms.


  • Reliable, Accurate and Easy To Use

  • Continuous, Encrypted data collection

  • Monitor and control with best-in-class accuracy

  • Torque vs. Turns, Time and RPM


Software Specifications

  • Cloud based software for use with power tongs and bucking units.

  • Software continuously updated with new features and security

  • Touch screen PC tablet with current Windows operating system

  • Pipe, accessory, power tong and hardware libraries

  • Automatic connection detection, approval, and dumping

  • Customizable 1 step PDF reports

  • Torque, turns, RPM and shift Control

  • Continuous encrypted recording


Hardware Specifications



WEIPU Quick Connectors

PC: Microsoft Surface Pro

Power: 110 -220 VAC Input Lithium ion with built in battery backup

Sampling Frequency: 30,000 Hz

Recording Frequency: 30 - 1000 Hz

Electronic Response Time: 0.04 ms

Dump Valve Response: 10 - 30 ms

Torque Control: +/- 1% of optimum

Turns Accuracy: < 0.1% per tong rotation

Computer Operating Temperature Range: 0 to 40 Deg C (32 to 104 Deg F)


AT-Bucking Unit Brochure

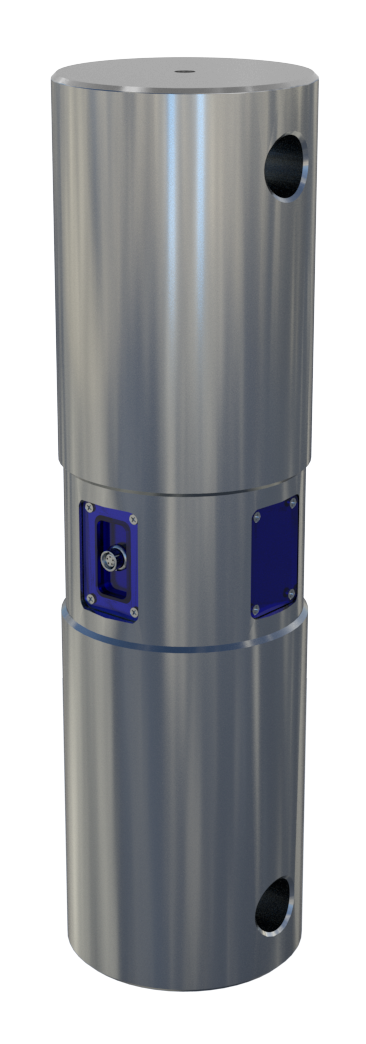

AT-TB

Torque Bar

Direct Torque Measurement

Maximize the accuracy of your iron roughnecks or make-break tools and remove guesswork by directly measuring the make-up torque being delivered to your connections.

Direct Connection to your AllTorque Control System

Mission Critical Calibrations

Reduce Damage to Drill Connections and mitigate "Twist-Off" events
